Removable snap in directional core provide one, two, three and four way horizontal diffusion patterns on ceiling application. Supply diffusers with one-way and three way directional cores are applicable for high-sidewall applications.

Also the need to harmonize with architectural demand and acoustic ceiling tile has to be satisfied. The diffusers designed suitable for mounting on various types of suspended ceiling systems.

Features and Benefits

Manufactured from extruded aluminium section or sheet steel.

Multi-cone easily removes from diffuser face to provide access for connecting ductwork, air balancing and further maintenance.

Core styles of 1,2,3 and 4 ways are available to  suit various required air pattern.

Easy to install and maintenance.

FINISHED

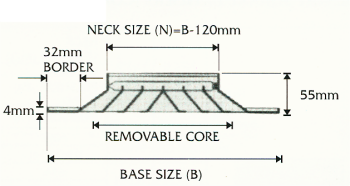

Extruded Aluminium Construction

Natural anodized or baked enamel in white as a standard, special anodize or baked enamel in various colour are also available on request.

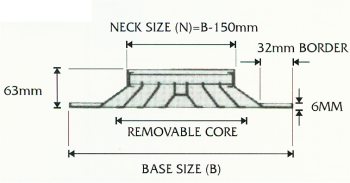

Steel Construction

White baked enamel as a standard finish, special colour finishes are also available to match architectural requirement.

ACCESSORIES

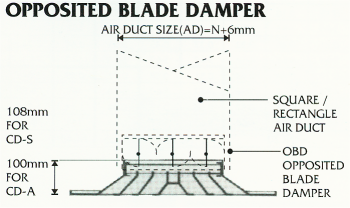

O.B.D.

Opposite blade damper, manufactured from sheet steel and fixed behind the CD as a volume controller, Standard finish is black baked enamel. The damper blades move simultaneously in opposite direction. Allow for smooth volume control from fully open to fully close. Smooth operation by turning a single adjustment screw.

NA

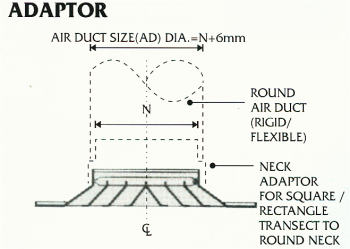

Neck Adaptors, Fixed behind the CD diffuser for the connecting of round duct or flexible duct.

CD Diffuser Performance Data

Model
