Model  HRL : HINGE TYPE LOUVRE
   The Model HRL is designed to function as return air Louvre on FAN COIL UNIT and all kinds of indoor return air register.

FEATURES AND BENEFITS

Constructed from extruded aluminium, mild sheet steel or stainless sheet steel.

Grille face is hinged to to outer frame, release metal lock to swing out the grille for access to filter.

Simple to install and maintenance.

ACCESSORIES

BESTAIR Panel filters are available in whole range of hinged type return air louvre.

The filter are fabricated from aluminium sheet and foil filter media standard and filter thickness is 22mm. Stainless steel foil filter media is also avaible on request.

Filter brackets are fixed onto inner face of louvre for holding the filter.

FINISHED

Extruded Aluminium Construction

Natural anodized or baked enamel in white as a standard, special anodize or baked enamel in various colour are also available on request.

Steel Construction

White baked enamel as a standard finish, special colour finishes are also available to match architectural requirement.

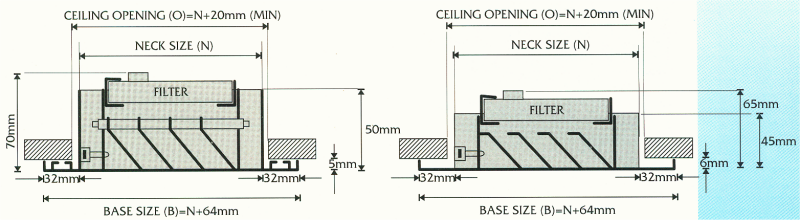

¡@ HRL-A Aluminium HRL-S  Steel



¡@

HRL Technical Data
¡@

¡@

¡@
